Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles

Brand Name : HUANYU

Model Number : BMH2000

Place of Origin : People's Republic of China

MOQ : 2 Units

Price : Negotiable

Payment Terms : T/T, T/T

Supply Ability : 120 units /Month

Delivery Time : 2 days

Packaging Details : 399cm

Feed Beam Type : BMH2000

Length : 3878mm

Machining : As Per Machining Drawings

Material : 7020 Aluminium Alloy

Application : HYDRAULIC ROCK DRILLING RIG

Net Weight Per Meter : 22.3 Kilograms Per Meter

Surface : Mill Finish

Contact Now

Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles​

FEATURES

1. Material: Aluminum Alloy 7000 Series ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5 degrees for whole length;

curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic:
σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks, dings, scratches .

6. Length Option: ranging from 2,100mm to 6,000mm

7. Atlas Feed Beam can be machined as per buyers' demand

8. Net Weight: 22.3kgs/meter

9. Package : Plywood case for Feed Beam

10. Single package size: Length x Width x Height = 399cm X27cm X 31 cm

SPECIFICATIONS

Material Option Aluminum Alloy 7000 Series
Heat Treatment T6 Temperature
Standards GB/T6892-2006
Mechanic σb≥320MPa, σ0.2≥270MPa, δ5≥8%
Feed Beam Surface Free from manufacturing defects, such as nicks, dings, scratches
FB Length Option 3878mm
Longitudianl Deviation 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length

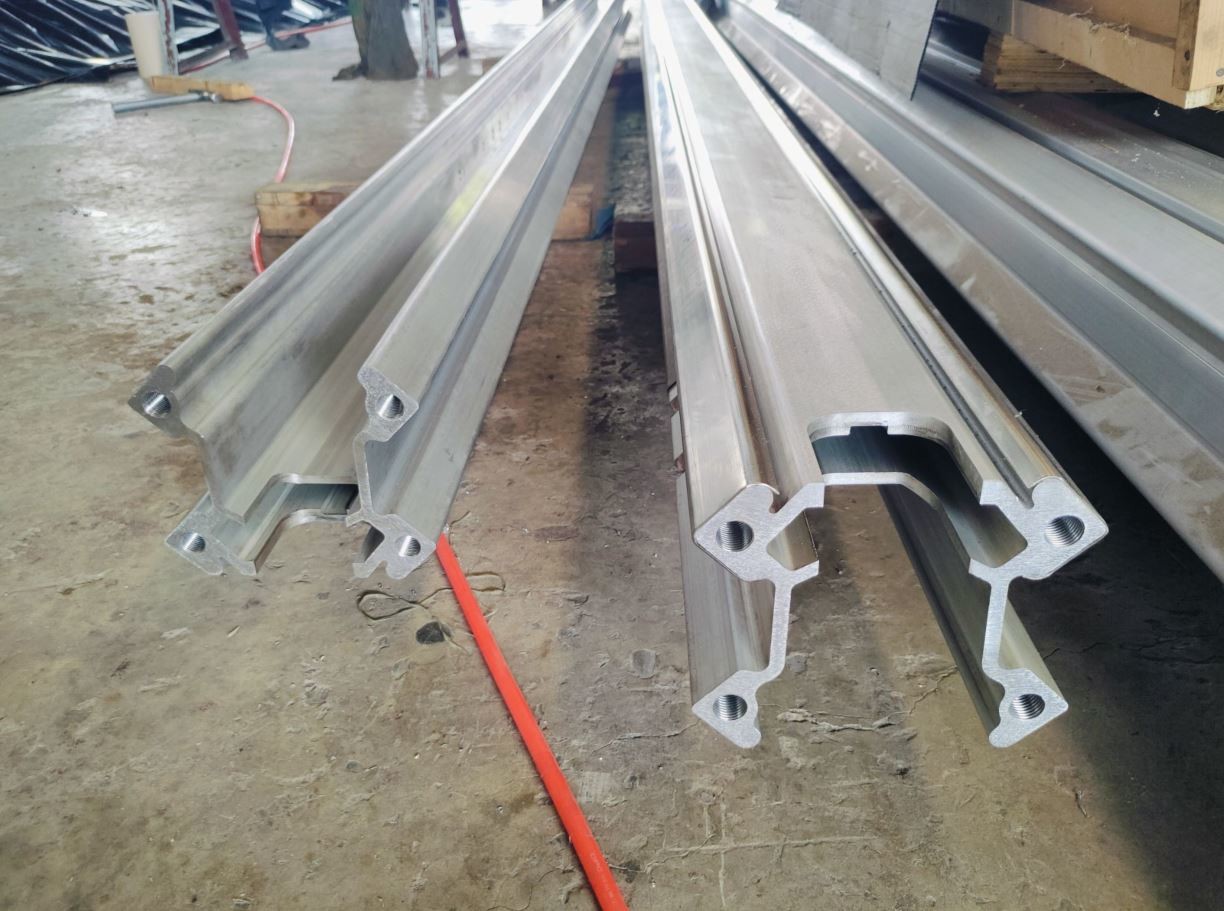

Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles

Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles

Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles

Atlas Lower Feed Beam 3128 2563 55 Aluminium Alloy Extruded Profiles
